TORUSMILL® basket mills

Fine grinding with basket mills

Basket mills are highly efficient batch milling systems. An integral impeller pumping wheel agitates the beads and circulates the millbase through the basket. The milling basket is double‒walled for cooling and has a screen that retains the milling beads but allows the millbase to pass through. An efficient circulation of the millbase through the basket ensures excellent dispersion results in a short period of time.

The double‒walled milling basket filled with beads
Intense circulation of the product is generated with the dispersion disc and integrated pump wheel
Product residue in the milling basket is centrifuged out by briefly running the milling and the dissolver discs.
Cleaning the milling system is carried out with a suitable cleaning fluid in a separate container
Basket mill for the production of large quantities of grinding stock
An integral impeller pumping wheel agitates the beads and circulates the millbase through the basket
fine grinding process with the TORUSMILL® TML basket mill

The fine grinding process
The double‒walled milling basket filled with beads is lowered into the millbase. Intense circulation of the product is generated with the dispersion disc and integrated pump wheel. For assessment of the milling process ‒ during dispersion ‒ a product sample can be taken at any time.

When the milling process is complete, the grinding basket is raised. Product residue in the milling basket is centrifuged out by briefly running the milling and the dissolver discs.

Cleaning the milling system is carried out with a suitable cleaning fluid in a separate container.

Highly efficient and robust basket mill technology for excellent fine grinding results

  • excellent grinding results in a short time
  • unique product circulation due to dissolver disc and pump wheel
  • repeatable grinding results
  • uniform average residence time
  • narrow particle size distribution
  • no dead areas due to effective mill base circulation
  • no escape of milling beads during the fine milling process
  • fine milling in a closed system
  • low energy requirement
  • Simple cleaning and quick change of millbase
  • Especially user‒friendly milling system: very simple and safe handling
Andreas Stummer
Sales Manager USA

We would be pleased to show you the impressive work section of our dispersing, mixing, stirring and fine grinding systems DISPERMAT® and TORUSMILL®.

Our skilled engineers are available at any time for personal advice.

+1 240 529 665 9
new catalog 2019
The new VMA catalog is available now!

Highest quality, many years of experience and innovative process technology characterize our dispersers, mixers, stirrers, basket mills and bead mills for laboratory pilot plant and production. Order now:

catalog@dispermat.com

Basket mills

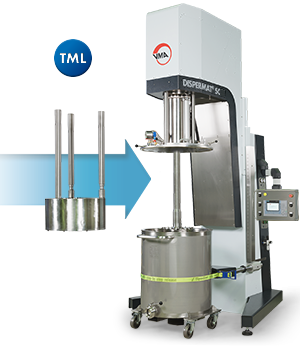

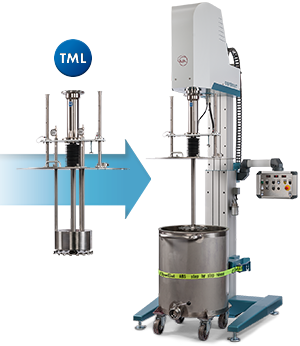

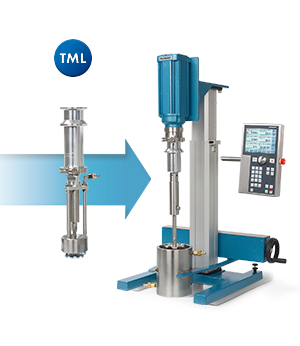

TORUSMILL® TML modular basket mills

SAVE TIME ‒ 2 IN 1: Fastest colour and disperser/basket mill change with the new TORUSMILL® quick change system. The modular TML basket mill converts a DISPERMAT® disperser into an extremely efficient batch bead milling system. Mixing, dispersing and fine grinding with one maschine.

Product  0.25 ‒ 1000 liters
Power  0.55 ‒ 37 kW

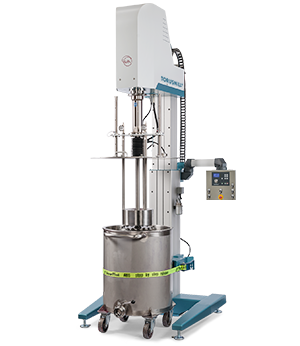

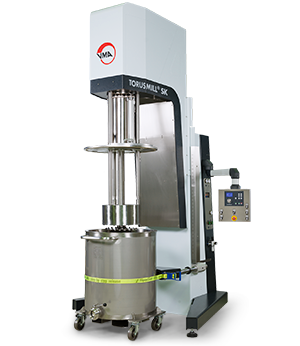

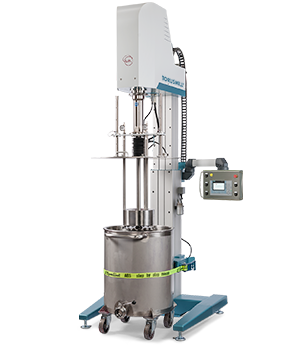

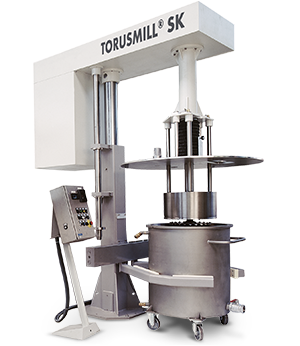

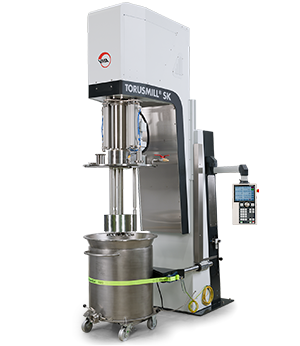

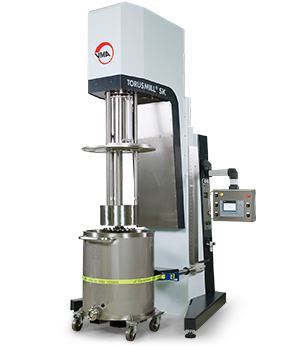

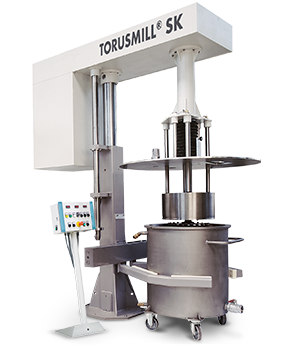

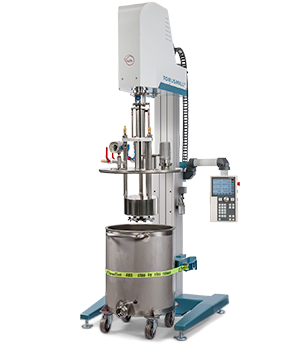

TORUSMILL® SK basket mills

The TORUSMILL® SK are high‒efficient basket mills with which excellent grinding results can be achieved in very short time. The TORUSMILL® SK is available from 15 kW up to 55 kW motor power for processing low and medium viscosity products.

Container capacity  75 ‒ 2000 liters
Power  15 ‒ 55 kW
Options  vacuum design, explosion protection, PLC-control

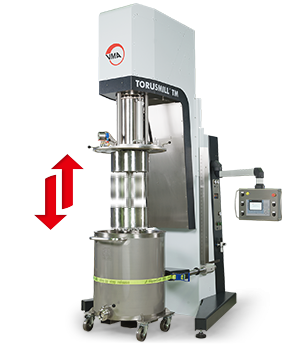

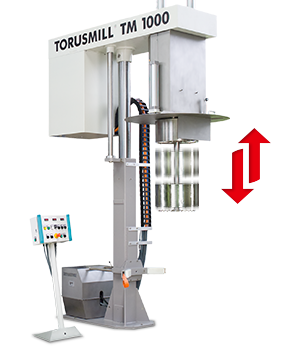

TORUSMILL® TM basket mills

Innovative basket mill with integrated disperser, a new trend setting design from 15 to 55 kW. The torus shaped basket is “parked” in the upper part of the machine. After predispersion the milling basket is lowered and the milling process for fine grinding starts.

Container capacity  75 ‒ 2000 liters
Power  15 ‒ 55 kW
Options  vacuum design, explosion protection, PLC-control
