DISPERMAT® bead mills

Fine grinding with bead mills

A bead mill is needed when the required dispersion result cannot be achieved on a high‒speed disperser. A bead mill will further break down the solid particles and improve the dispersion result.

  • Wetting the surface of the solid particles
  • Mechanical break down of solid particles to a smaller size
  • Stabilization of smaller particles generated during the milling process against reagglomeration

A bead mill differs from the high‒speed disperser used to prepare the millbase by using small ceramic beads to mechanically break down of solid particles and improve the dispersion result. A bead mill consists of a milling chamber containing small ceramic beads and a milling rotor that is driven by a motor.

Bead mill accessory for DISPERMAT dispersers
The fine grinding process with the vertical bead mill APS
The fine grinding process with the horizontal bead mill DISPERMAT® SL

The dispersion result is affected by the speed of the milling rotor, the size of the beads and the speed at which the product is passed through the mill. A bead mill can be used to disperse the product in either a single pass, or several individual passes, or be set up to continuously circulate the product which is known as re‒circulation milling.

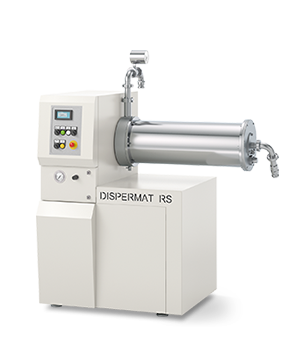

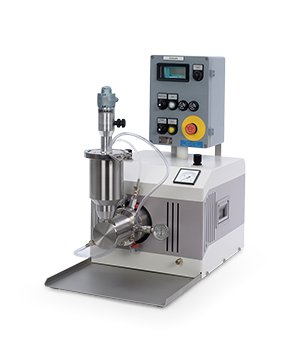

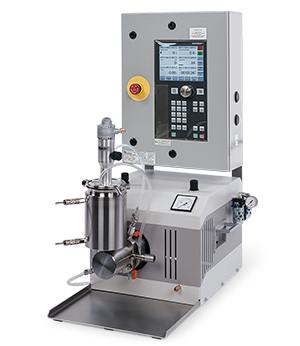

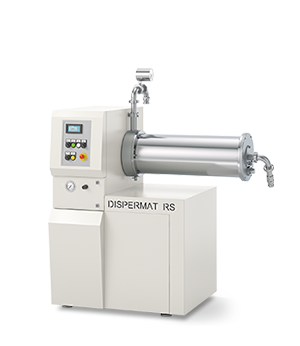

Explosion‒proof bead mills
All DISPERMAT® bead mills are also available in an explosion-proof version according to ATEX

DISPERMAT® bead mills are used for many applications

  • Dyestuffs / varnishes
  • Pigments / additives
  • Printing inks
  • Chemistry
  • Plastics
  • Chemistry
  • Electronics
  • Adhesives
  • Coatings
  • Pharmacy /cosmetics
  • Microbiology
  • Agrochemicals
Andreas Stummer
Sales Manager USA

We would be pleased to show you the impressive work section of our dispersing, mixing, stirring and fine grinding systems DISPERMAT® and TORUSMILL®.

Our skilled engineers are available at any time for personal advice.

+1 240 529 665 9
new catalog 2019
The new VMA catalog is available now!

Highest quality, many years of experience and innovative process technology characterize our dispersers, mixers, stirrers, basket mills and bead mills for laboratory pilot plant and production. Order now:

catalog@dispermat.com

Bead mills

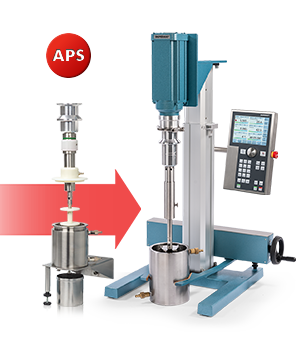

APS bead mills

Bead mill accessory for DISPERMAT® dispersers. In combination with an APS milling system, a DISPERMAT® disperser changes into a closed batch bead mill.

Product  8 ml ‒ 3.5 liters

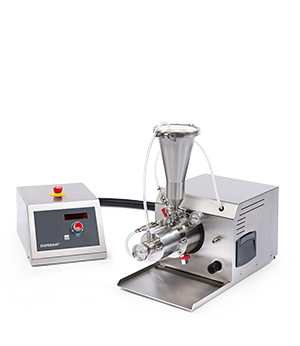

DISPERMAT® SL-B bead mill

Fine grinding of batch sizes from 150 to 750 ml with the compact DISPERMAT® SL-B bead mill.

Product  0.15 ‒ 0.75 liters
Power  1.1 kW
Speed  0 ‒ 6000 rpm

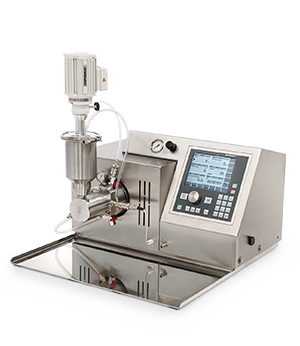

DISPERMAT® SL bead mills

Horizontal bead mill for laboratory and pilot plants for fine grinding of up to 50 liters with extensive process control.

Product  0.05 ‒ 50 liters
Power  1.1 ‒ 4 kW
Speed  0 ‒ 6000 rpm

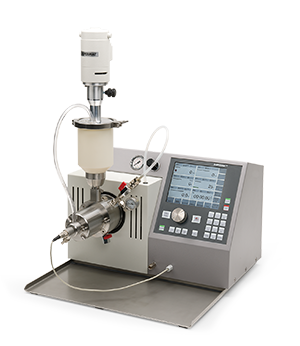

DISPERMAT® SL-NANO bead mills

Nano bead mill for 0.1mm milling beads. Option: explosion‒protection

Product  0.05 ‒ 10 liters
Power  1.1 ‒ 3 kW
Speed  0 ‒ 6000 rpm

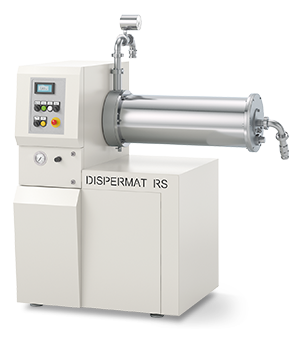

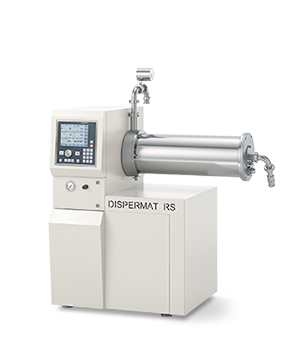

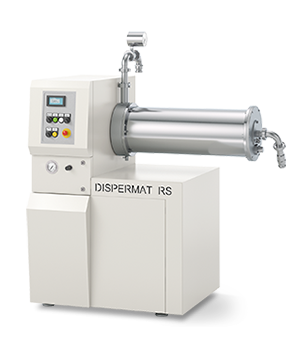

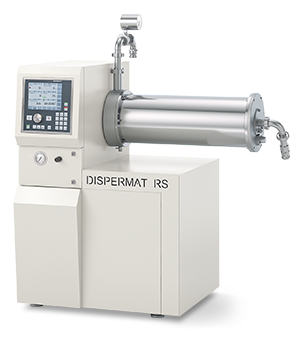

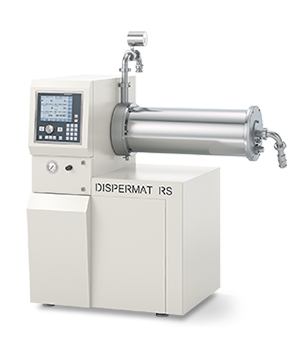

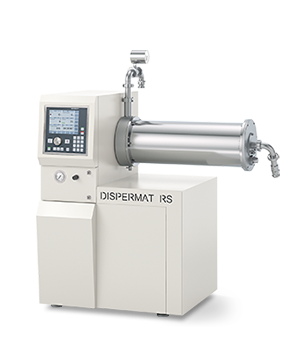

DISPERMAT® RS bead mills

Fine grinding of large volumes and temperature‒sensitive products. DISPERMAT® RS bead mills for single pass and for circulation milling

Product  25 ‒ 1000 litre/hour
Power  5.5 ‒ 30 kW
Speed  0 ‒ 2600 rpm

DISPERMAT® and TORUSMILL®

Durable and highly efficient dispersers, mixers, stirrers, basket mills and bead mills in operation worldwide

VMA‒GETZMANN develops, produces and markets high quality dispersers, mixers, stirrers, bead mills and basket mills. The innovative combination of technology and design as well as high quality are characteristic of our products. Of course, our mixing, dispersing and grinding equipment have integrated safety devices according to the EC Machinery Directive 2006/42 / EC.

Working together with the client our specialists optimize the essential process engineering and the most suitable system solution. Our involved development and design team comes with innovative ideas and long time experience in the mixing, dispersing and grinding technology. We produce with the most modern machine tools and therefore we guarantee a high standard of quality. We prove our expertise and reliability by also having an excellent after sales service.

We would be pleased to show you the impressive work section of our dispersers, mixers, stirrers, bead mills and basket mills for dispersing, mixing, stirring, homogenizing and fine grinding up to the nanoscale. Our skilled engineers are available at any time for personal advice.

We look forward to your call:   +1 240 529 665 9
